Las estaciones de fragmentación de mandíbula se modulan de manera singular;Estructura del marco sin soldadura2,0Las cavidades rotas de gran inclinación y los ángulos de mordida más altos aumentaron la productividad en un 25%.Tres.Regulador hidráulico del tamaño de la boca de descarga.4,0El sistema de alimentación puede adaptarse a las condiciones del cliente sobre el terreno.5,0El diseño compacto facilita el transporte y el transporte.6,0Las operaciones inalámbricas pueden reducir el número de operadores de equipo.
- PARAMETER

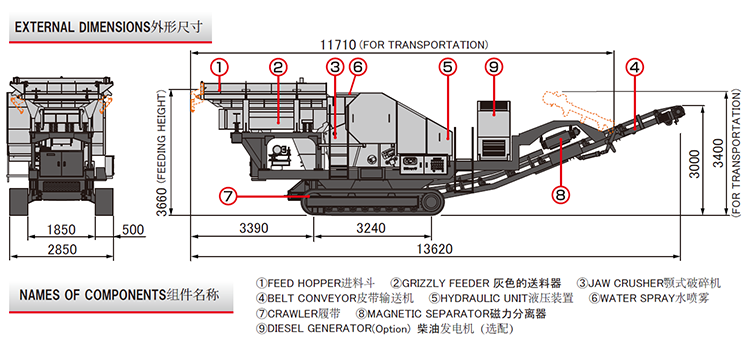

- DIBUJOS / DETALLES / VENTAJAS
- SITIO DE CONSTRUCCIÓN
| Component | Model | MC-60J | MC106J | MC113J | Component | Model | MC-60J | MC-106J | MC-113J |
|
Feeding device
|
Feeding capacity(t/h) | 100 | 450 | 450 | Tail belt conveyor | Stack height (mm) | 2000 | 2300 | 2300 |
| Max.feeding(mm) | 380 | 700 | 750 | LengthxWidth(mm) | 2580xB500 | 3600xB500 | 3600xB500 | ||
| Feeding height(mm) | 3000 | 4100 | 4100 | Power(kw) | 3 | 3 | 3 | ||
| Hopper volume(m3) | 3 | 5 | 5 | Whole machine | Walking engine power (kw) | 70 | 90 | 90 | |
|
Vibrating feeder
|
LengthxWidth(mm) | 3100 x 600 | 4000x1040 | 4000x1040 | Total Weight(t) | 15 | 44 | 45 | |
| Power(kw) | 2.2x2 | 3.7x2 | 3.7x2 | Work efficiency(t/h) | 30-80 | 130-450 | 130-450 | ||
| Crusher | Special jaw crusher | C60 | C106 | C113 |
Transport size LengthxWidthx Height(m) |
13x2.7x3 | 16x3.3x3.7 | 16x3.3x3.7 | |
| Length and width of crusher mouth(mm) | 420 x 650 | 1060 x 700 | 750x1130 | Total power(kw) | 50 | 135 | 135 | ||
| Max. feed(mm) | 380 | 700 | 750 |
Remarks: 1.The efficiency of the crusher is related to the hardness of the stone, the particle size of the feed, and the particle size of the discharge. 2. Standard configuration: tailing belt, manual control, wireless remote control 3. Optional: Return material system, foldable conveyor belt, iron remover, dust removal spray system, belt cover. 4. Specs and dimensions of this machine are subject to the actual product. They might be changed without any prior notice for the purpose of improvement. |
|||||
| Discharge size(mm) | 30-100 | 70-200 | 70-200 | ||||||
| Crusher weight(t) | 6.5 | 18 | 19 | ||||||
| Power(kw) | 37 | 110 | 110 | ||||||
| Main belt conveyor | Stack height(mm) | 3000 | 3200 | 3200 | |||||
| LengthxWidth(mm) | 8000 xB650 | 13000 xB1200 | 13000xB1200 | ||||||
| Power(kw) | 5.5 | 15 | 15 |
|
|||||
