PSD200 Crusher Bucket

The world's highest performance jaw type crusher for attachment type! The excavator crusher bucket is usually installed on the excavator and can work with the hydraulic power of the excavator. Excavator crushing buckets are widely used in the crushing of various ores and bulk materials in various industries, such as mining, building materials, roads, railways, water conservancy, chemical and other industries. It has good flexibility and cost advantages for the crushing and recycling of concrete in the construction industry and the construction of mountain roads. Equipped with excavator attachments, your excavator can be used for multiple purposes and create greater value.

PARAMETER

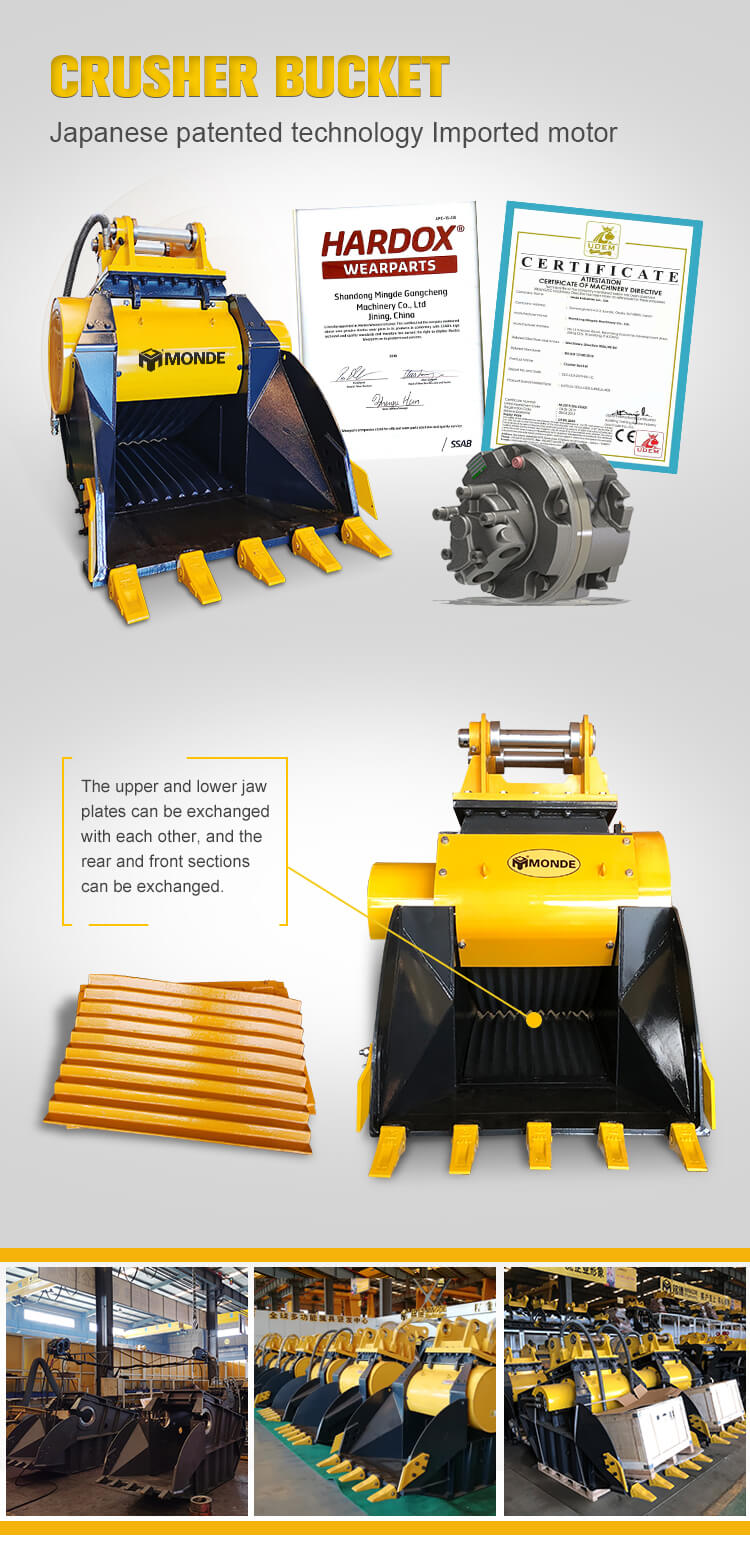

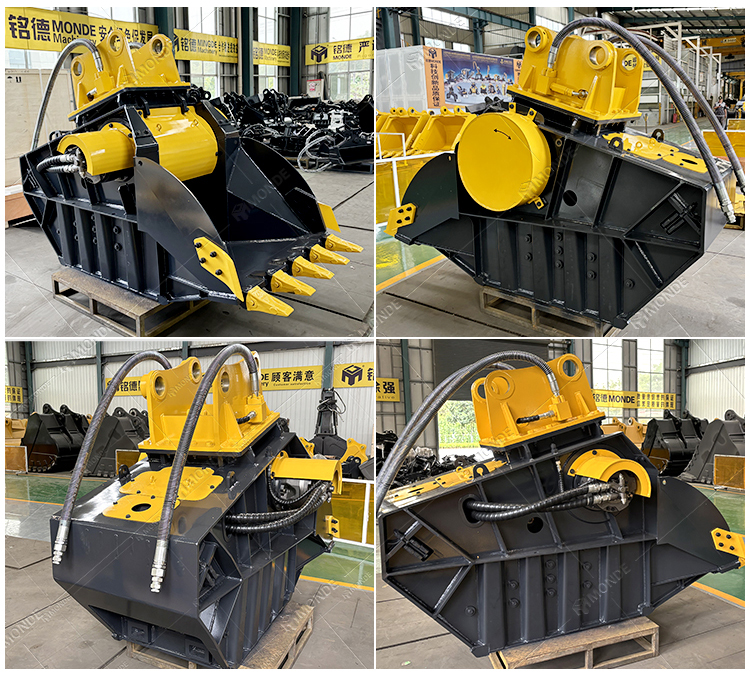

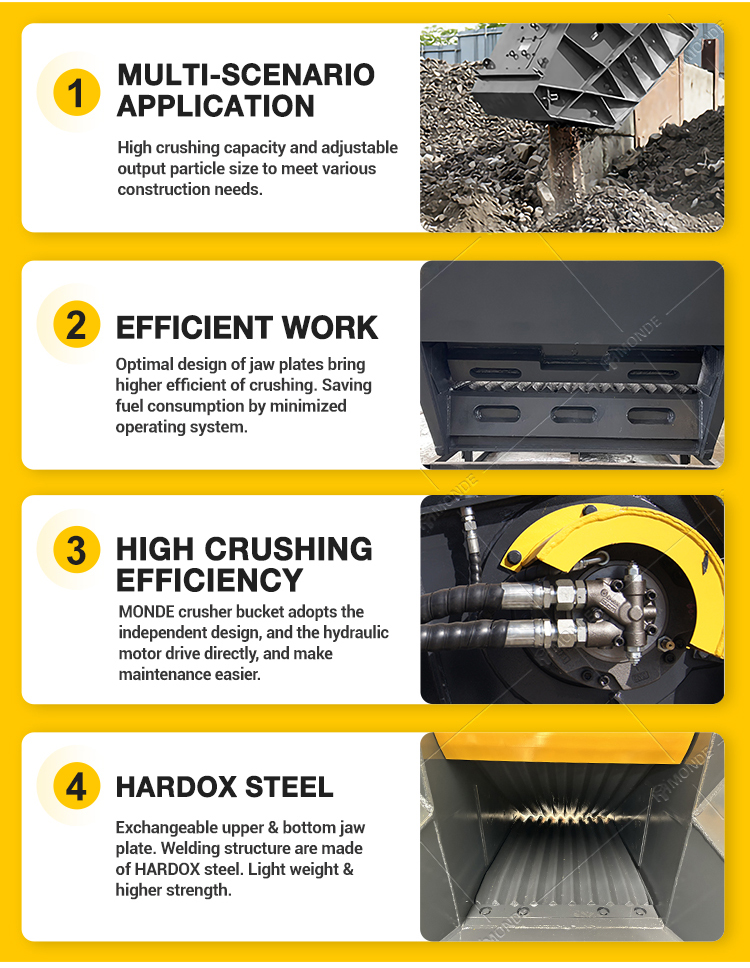

DRAWINGS/DETAILS/ADVANTAGES

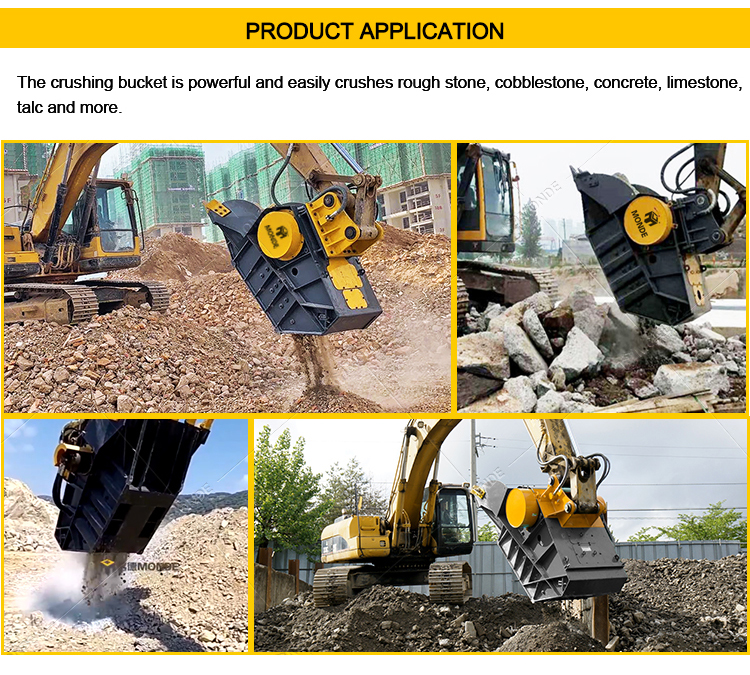

CONSTRUCTION SITE

Excavator attachments Monde Crusher Bucket

Crusher Bucket is usually installed on the excavator, using the hydraulic power of the excavator, relying on the strong pinch of the upper and lower jaws to crush the stone, which can crush the stone and construction waste, and can quickly separate the steel bars in the concrete, which can reduce the handling of concrete blocks on the project site. The transportation and other engineering costs caused by the crushed stone have prompted the concrete waste to be directly recycled and reused on the construction site.

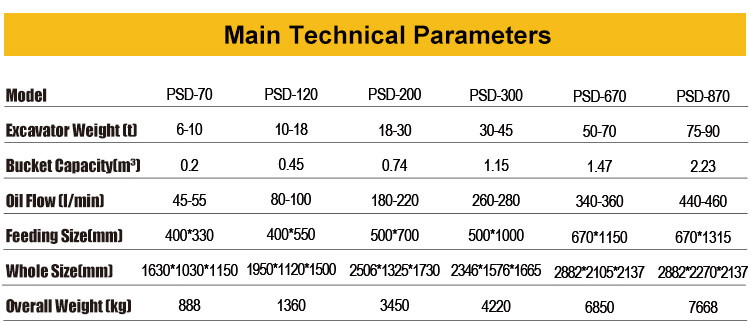

Main Technical Parameters

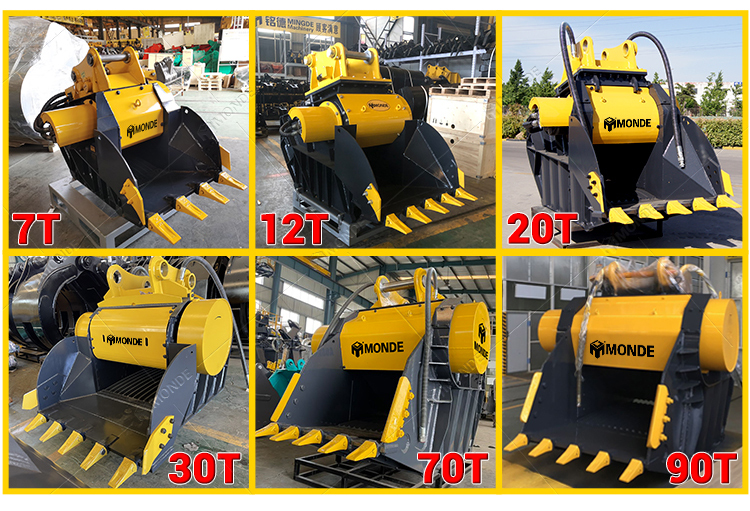

Model	PSD-70	PSD-120	PSD-200	PSD-300	PSD-670	PSD-870
Excavator weight (t)	6-10	10-18	18-30	30-45	50-70	75-90
Bucket capacity (m³)	0.2	0.45	0.74	1.15	1.47	2.23
Oil Flow (l/min)	45-50	90-110	180-230	190-240	340-360	440-460
Feeding Size (mm)	330*450	400*550	500*700	500*1000	670*1150	670*1315
Whole Size (mm)	15859001110	189510901420	252513251798	235316651576	288221052137	288222702137
Overall Weight (kg)	800	1300	3350	4220	6850	7668

PSD200 Crusher Bucket
