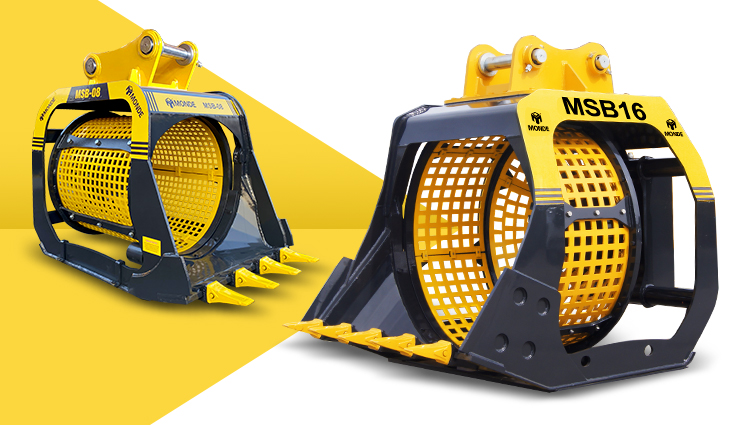

MONDE excavator screening buckets - get more done on-site.
Perfect for the screening and selection of natural materials, both before and after the crushing phase, the MONDE screening buckets reduce crushing times by up to 60%, consequently allowing you to salvage materials suited to the type of job being carried out, and to manage them in the best way possible.

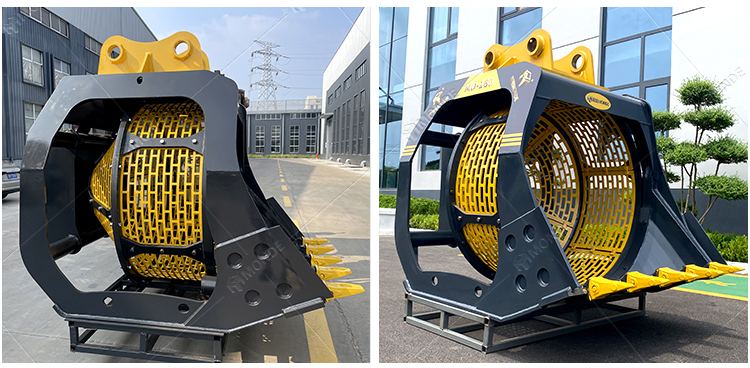

1.MONDE rotary screening bucket comes with two appearance designs, one for mini excavators from 1 ton to 5.5 ton, one for bigger excavators from 6 ton to 50 ton.
2.All equipped with an interchangeable mesh system around the drum inner circumference and replaceable sections in the conical rear area of the drum.
3.Suitable for top-soil, quarried stone, remediation of contaminated soils beaches, demolition waste and green recycling duties.

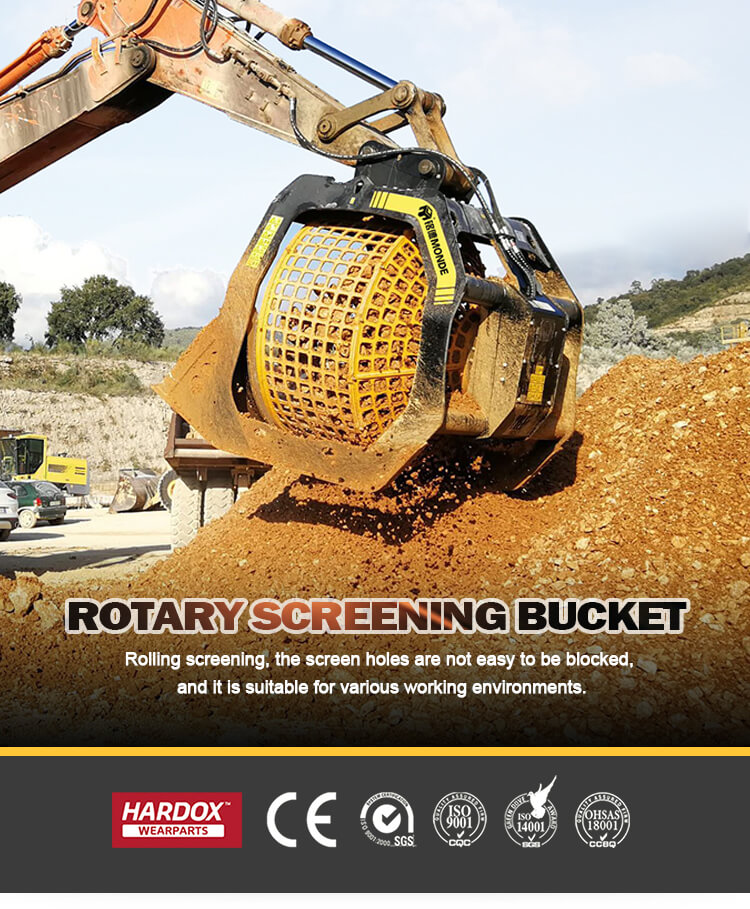

4.MONDE rotary screening bucket is just at home clearing on a demolition site or in the quarry cleaning and sizing stone.
|
Model
|
MSB01
|
MSB02
|
MSB08
|
MSB12
|
MSB16
|
MSB18
|
MSB20
|
|
Machine Class (t)
|
1.2-2.5
|
2.5-5.5
|
6-8
|
10-18
|
19-28
|
29-38
|
40-50
|
|
Rotary Screen Diameter (mm)
|
500
|
592
|
700
|
1005
|
1420
|
1470
|
1700
|
|
Rotating Speed (r/min)
|
30-35
|
30-35
|
35-40
|
30-35
|
30-35
|
35-45
|
35-45
|
|
Working Pressure (Mpa)
|
10-12
|
10-12
|
12-15
|
18-21
|
18-22
|
20-23
|
20-23
|
|
Oil Flow (L/min)
|
18-20
|
18-20
|
40-45
|
90-100
|
90-100
|
90-100
|
100-150
|
|
Weight (kg)
|
150
|
260
|
515
|
965
|
1700
|
2800
|
4080
|
1-50 ton models available.MONDE rotary screen bucket has beautiful shape, with rock solid quality and affordable price.
The flexible hitch can be freely disassembled, suitable for various brands of excavators
MONDE use waterproof motor: closed protector, can be used on land works and under water. External pipeline, for easy maintenance.

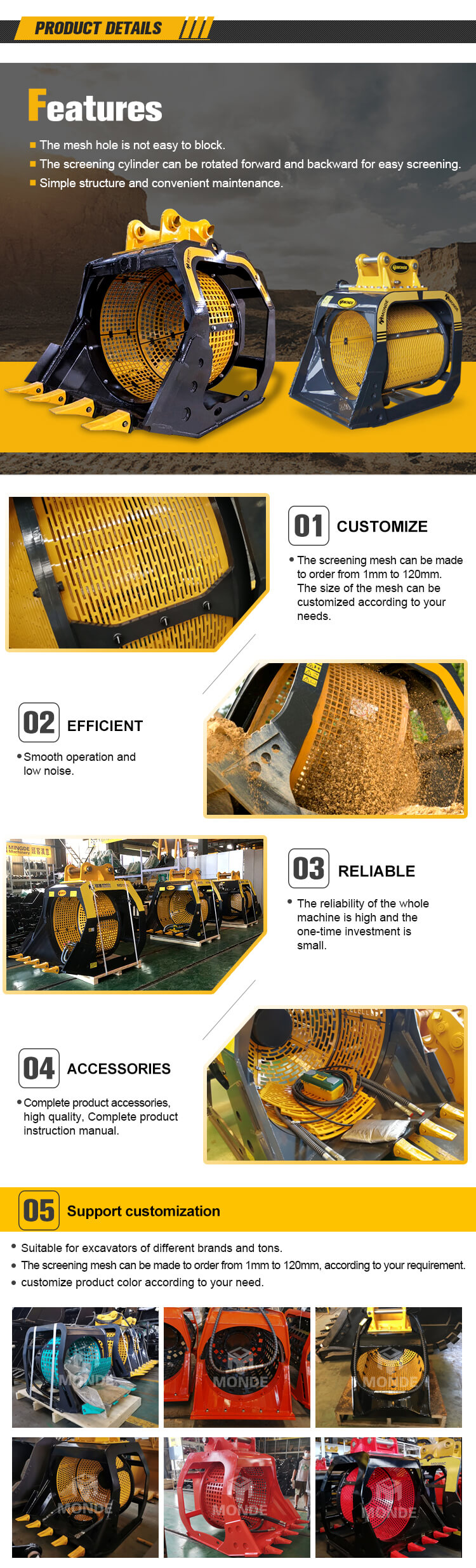

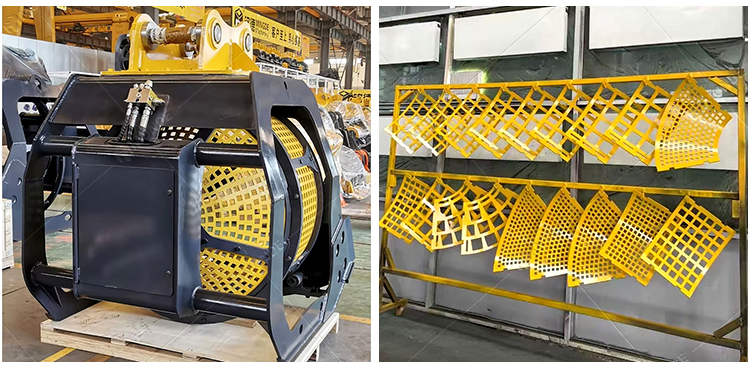

Screen size can be customized according to requirements and working condition.(mesh is Integrated molding by laser cutting which is beautiful and exquisite)

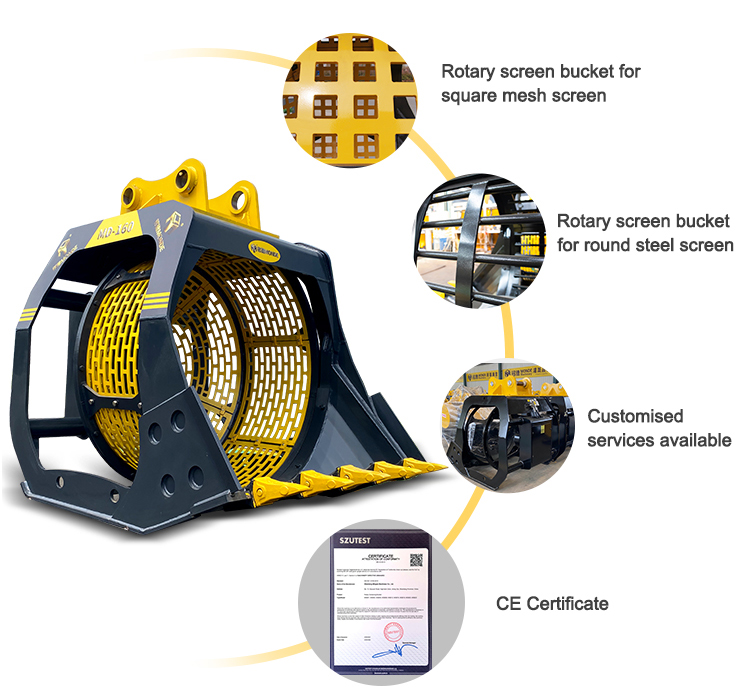

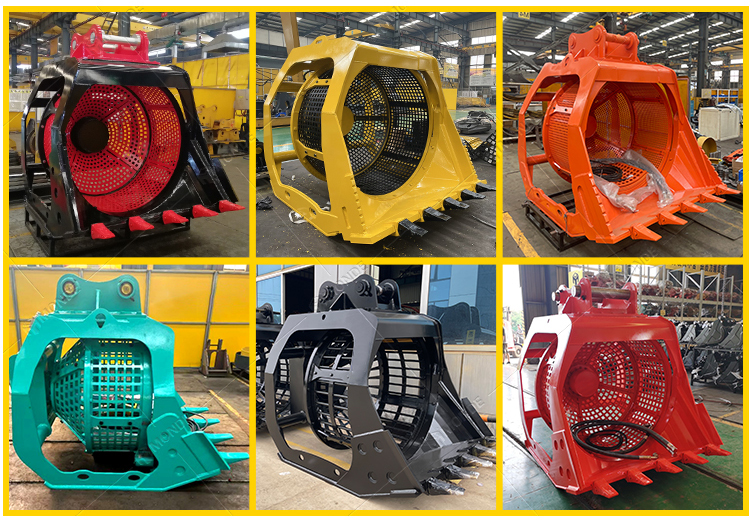

MONDE support color, special-shaped screen customed. Screens are replaceable. Dears, if you don't know what's size do you want，we will recommend the most suitable screen for you according to your working conditions.

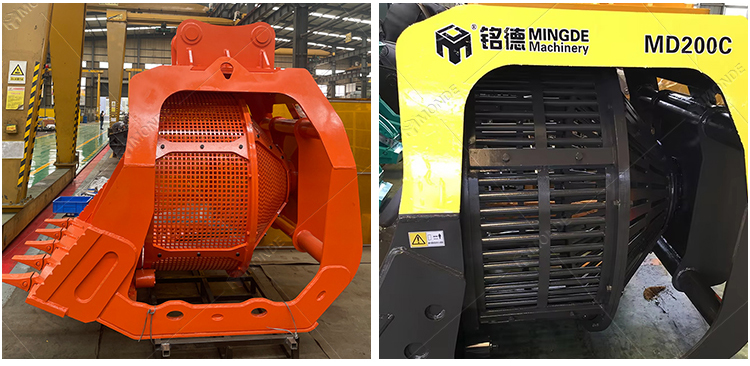

This type screens made of round steel.Has more higher wear resistance（More suitable for screening hard rock stones）For screening wet materials efficiency will be much higher
1. All vulnerable parts, such as hydraulic motors and pipelines, are protected by solid 3 covers.
2. Blades and interior protection of the bucket are made of highly wear-resistant steel, and the main structure of the product is strengthened.
3. Steel bearing pins are installed for all joints of the bucket.
4. All buckets main material is wear-resistant plate, high screening efficiency, long service life.

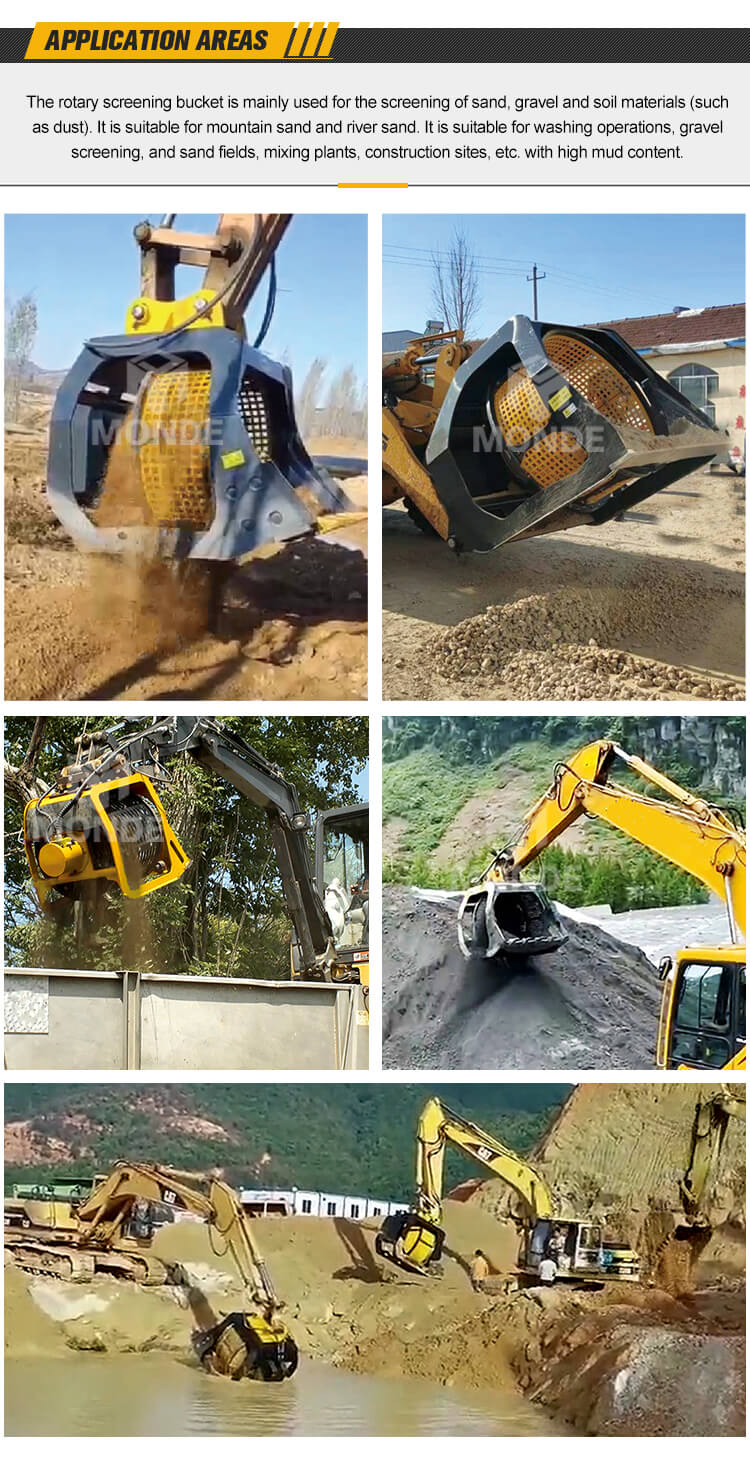

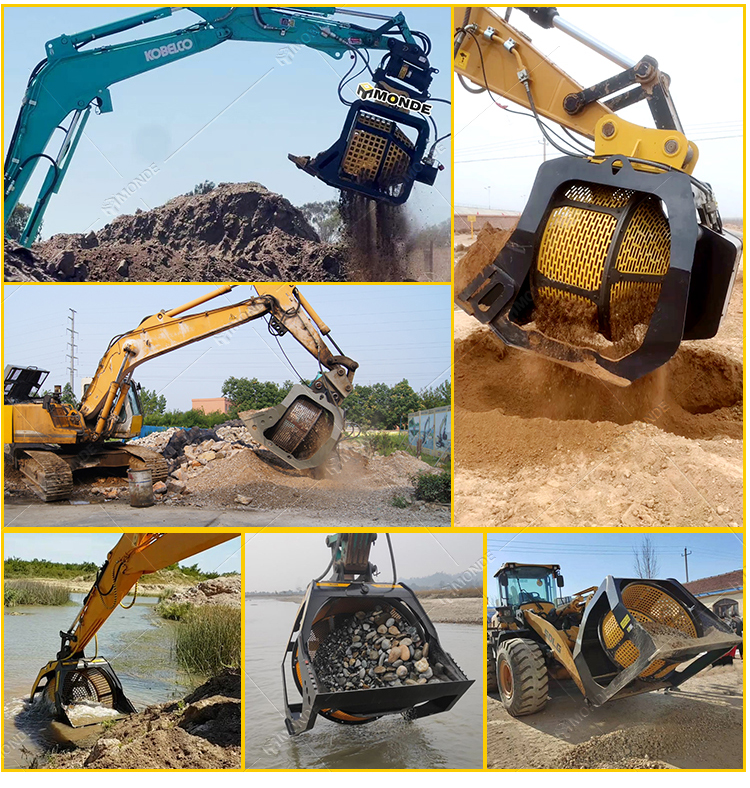

The rotary screening bucket is mainly used for the screening of sand, gravel and soil materials (such as dust). It is suitable for mountain sand and river sand. It is suitable for washing operations, gravel screening, and sand fields, mixing plants, construction sites, etc.
Shandong Mingde Machinery Co., Ltd.
The quality of all products is strictly controlled from processing to delivery.Mingde has passed ISO9001 international quality system certification, SGS testing certification, CE European safety certification, ISO14001 environmental management system certification and international welding technology certification.
Company Profile：
Shandong Mingde Machinery Co., Ltd. is a world-renowned enterprise engaged in the research and development, manufacturing, sales and after-sales service of multi-functional attachments, mobile crushers, intelligent robots and other series of products.

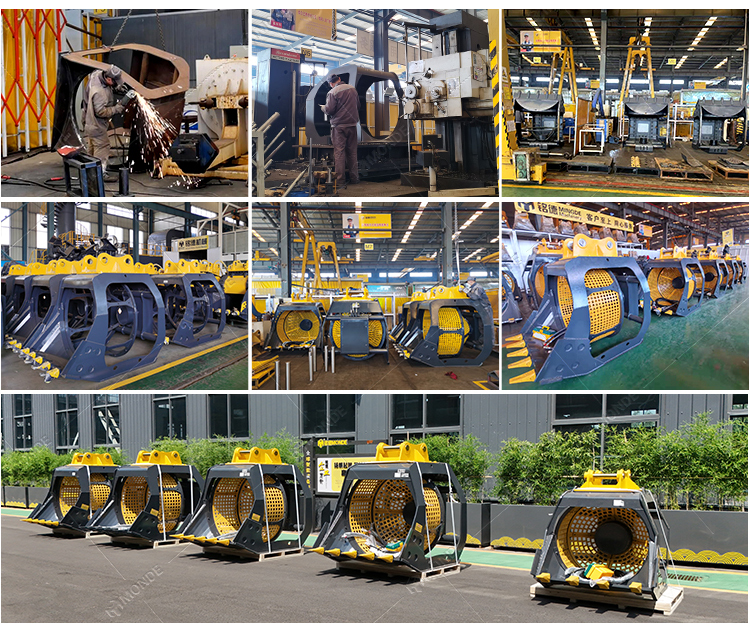

Mingde currently has 500+ employees, 60000+ sq meters workshop, 70+ engineers and 200+ equipments with different functions, and 30+ testing and inspection equipment. biggest dealer of SSAB for HARDOX plate in China, also we are HARDOX WEARPARTS global processing center.
Through years of stable development, Mingde has passed ISO9001 international quality system certification, SGS testing certification, CE European safety certification, ISO14001 environmental management system certification and international welding technology certification. Monde has successfully established close cooperation with several well-know machine equipment companies, such as SHANTUI, Komatsu, JCB, HBXG, SCMMC, etc and supply OEM service for them.

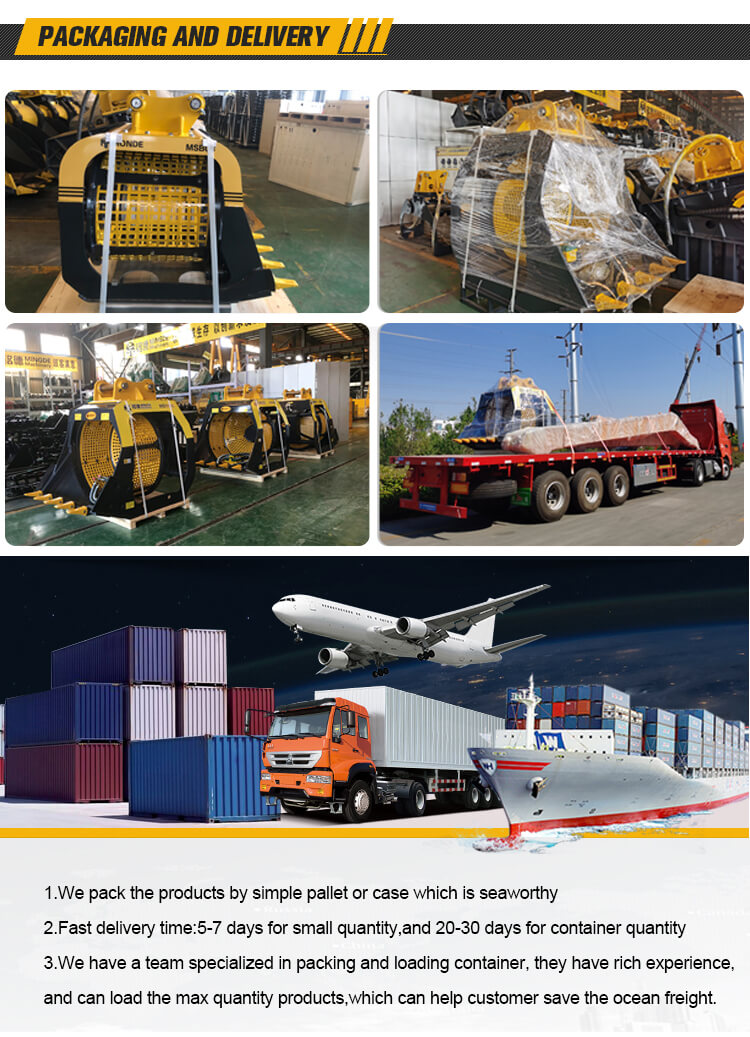

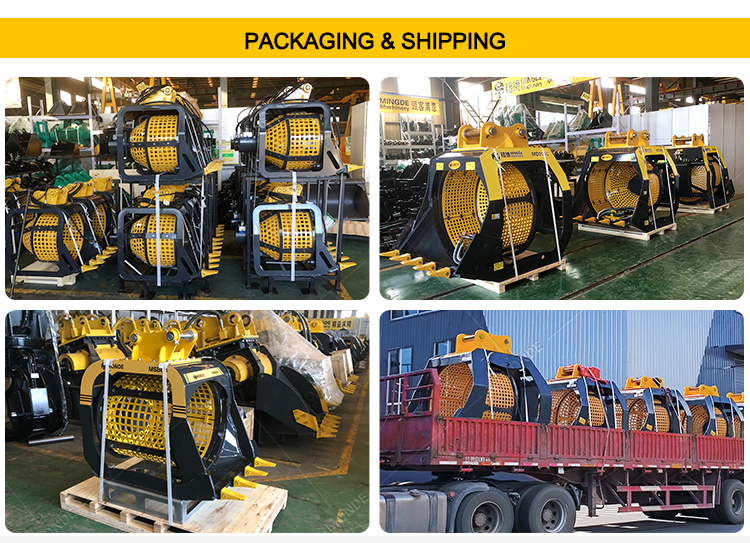

Packaging & Delivery：
1.We pack the products by simple pallet or case which is seaworthy.
2.Fast delivery time:5-7 days for small quantity, and 20-30 days for container quantity.
3.We have a team specialized in packing and loading container, they have rich experience,and can load the max quantity products,which can help customer save the ocean freight.
