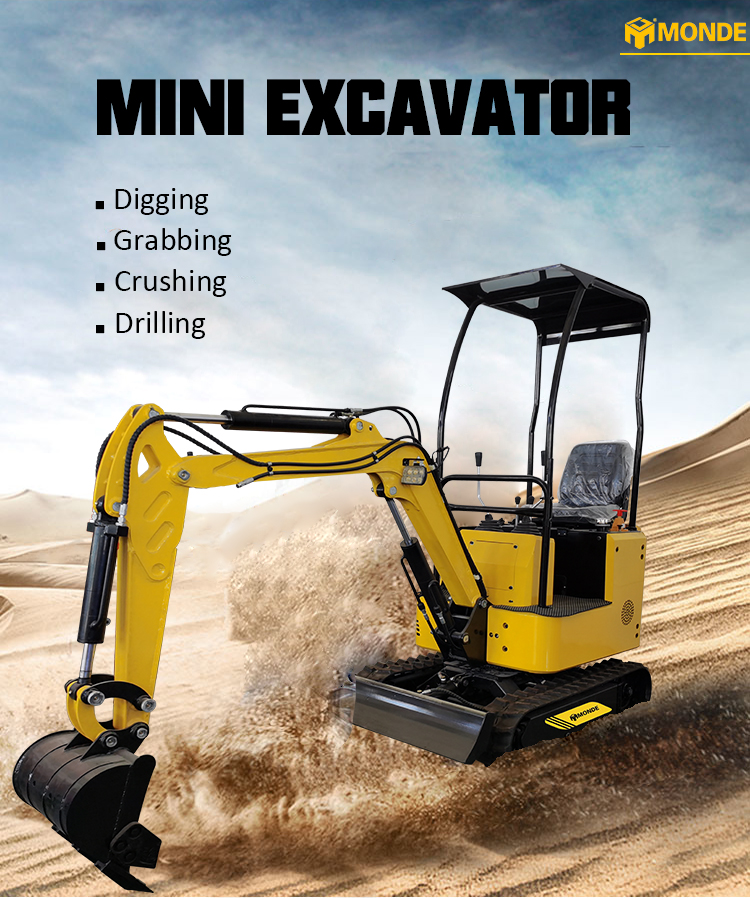

Excavadora miniatura de 0,8 t

La excavadora paisajística de 0,8 toneladas, 1 tonelada y 1,5 toneladas se utiliza ampliamente en la agricultura y la construcción, se puede utilizar para la recuperación de tierras baldías, la excavación de rocas, la excavación de carreteras de montaña, la plantación, el sitio de construcción, la rotura de carreteras, la excavación de trincheras de cables, La excavación de zanjas de drenaje y la rotura de interiores y exteriores.

NO.		Item	Unit	SD08
1		Weight	kg	700
2		Bucket type		Backhoe
3		Standard bucket capacity	M3	0.02
4	Engine	Model		Changcai192
5		Theoretical oil consumption	L	0.499
6		Rated speed output power/speed	Kw/r/min	7.6/8.2
7		Torque	N.M/r/min	23.4
8	Speed and digging force	Max speed	KM/h	2
9		Swing speed	rpm	12
10		Max. climbing ability	degree	30
11		Digging force	KN	11
12		Stick digging force	KN	7.8
13		Max traction force	KN	15
14	Ground pressure		kgf/cm2	20
15	Track material			rubber
16	Type of tensioner			Butter cylinder
17	Hydraulic system pressure		MPA	16
18	Oil flow		L/min	8
19	Hydraulic and liquid capacit	Pump system		Gear pump
20		Working pressure	MPA	20
21		Flow	L/min	8
22		Hydraulic oil tank capacity	L	12
23		Max. engine oil capacity	L	1.5
24		Fuel tank capacity	L	5
25		Dimensions	Unit
26	Track material		mm	420
27	Total length of track		mm	1140
28	Min ground clearance		mm	80
29	Platform end radius of gyration		mm	1100
30	Chassis width		mm	720
31	Track width		mm	150
32	Track height		mm	245
33	Transport length		mm	24480
34	Total height of excavator		mm	1250
35	Work range		Unit
36	Max.dig radius		mm	2450
37	Max dig depth		mm	1200
38	Max. dig height		mm	2350
39	Max.unload height		mm	1600
40	Max. vertical digging depth		mm	1300
41	Min radius of gyration		mm	1100
42	Max. lifting height of Dozer blade		mm	230
43	Max. digging depth of bulldozer		mm	135
44	Boom side swing（L/R）		degree	53/42
