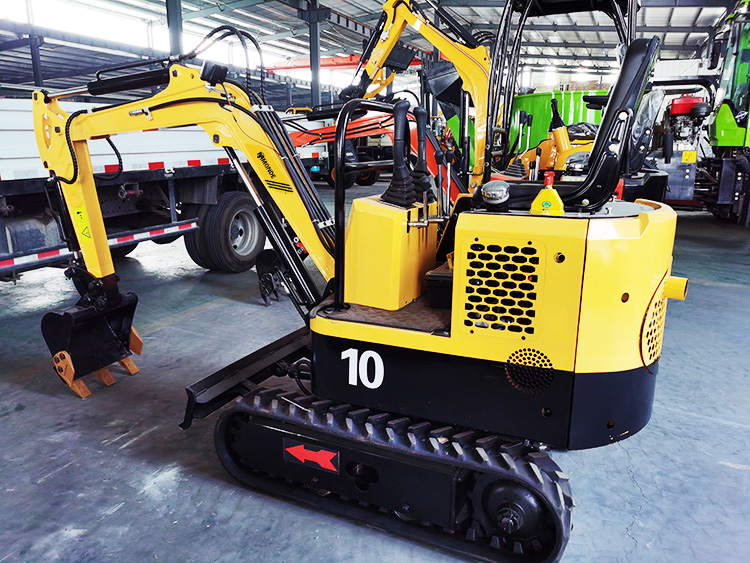

1t Mini Excavator

This mini excavator is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain, it's reliable and of userfriendly. With multiple functions of digging, grabbing, drilling, bull-dozing, ditchcleaning and rock-breaking.

No.		Item	Unit	SD10
1		Weight	kg	880
2		Bucket type		Backhoe
3		Standard bucket capacity	M3	0.025
4	Engine	Model		Changcai192
5		Theoretical oil consumption	L	0.499
6		Rated speed output power/speed	Kw/r/min	8.6
7		Torque	N.M/r/min	43
8	Speed and digging force	Max speed	KM/h	3.5
9		Swing speed	rpm	12
10		Max. climbing ability	degree	30
11		Digging force	KN	11
12		Stick digging force	KN	8
13		Max traction force	KN	15
14	Ground pressure		kgf/cm2	25
15	Track material			rubber
16	Type of tensioner			Butter cylinder
17	Hydraulic system pressure		MPA	25
18	Oil flow		L/min	8
19	Hydraulic and liquid capacit	Pump system		Plunger pump
20		Working pressure	MPA	30
21		Flow	L/min	8
22		Hydraulic oil tank capacity	L	12
23		Max. engine oil capacity	L	1.5
24		Fuel tank capacity	L	7
25	Dimendions		Unit
26	Track material		mm	770
27	Total length of track		mm	1090
28	Min ground clearance		mm	380
29	Platform end radius of gyration		mm	733
30	Chassis width		mm	940
31	Track width		mm	170
32	Track height		mm	320
33	Transport length		mm	2550
34	Total height of excavator		mm	1330
35	Dimensions		Unit
36	Max.dig radius		mm	2400
37	Max dig depth		mm	1400
38	Max. dig height		mm	2490
39	Max.unload height		mm	1750
40	Max. vertical digging depth		mm	1320
41	Min radius of gyration		mm	1190
42	Max. lifting height of Dozer blade		mm	325
43	Max. digging depth of bulldozer		mm	175
44	Boom side swing（L/R）
45	Main configuration	valve		YIKDE
46		Pump		Plunger pump
47		Walk		Domestic
48		Walk
49		Rotary motor		Domestic
50		Operation method		The handle is on the front
