1.5t Mini Excavator

This mini excavator has the advantages of flexible and practical, high configuration, high performance, low oil consumption, beautiful appearance and wide application. Suitable for vegetable greenhouses loose, landscaping of municipal departments, orchard nursery tree digging, concrete pavement broken, sand and stone material mixing and small space construction operations,reducing maintenance and operating costs, improving the degree of mechanization.

No.		Item	Unit	SD15 mechanical	SD15 Pilot
1		Weight	kg	980	980
2		Bucket type		Backhoe	Backhoe
3		Standard bucket capacity	M3	0.025	0.025
4	Engine	Model		ChangcaiEV80	ChangcaiEV80
5		Theoretical oil consumption	L	0.794	0.794
6		Rated speed output power/speed	Kw/r/min	14	14
7		Torque	N.M/r/min	48	48
8	Speed and digging force	Max speed	KM/h	3.5	3.5
9		Swing speed	rpm	16	16
10		Max. climbing ability	degree	30	30
11		Digging force	KN	13.9	13.9
12		Stick digging force	KN	8.8	8.8
13		Max traction force	KN	15	15
14	Ground pressure		kgf/cm2	32	32

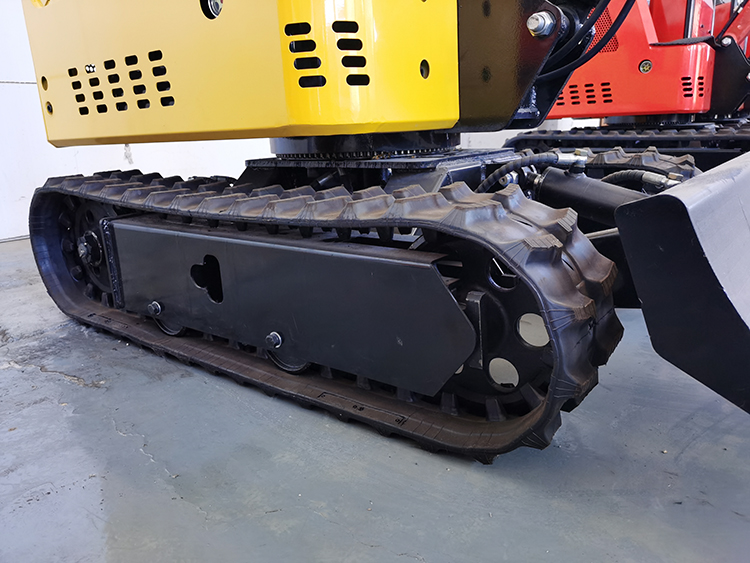

15	Track material			rubber	rubber
16	Type of tensioner			Butter cylinder	Butter cylinder
17	Hydraulic system pressure		MPA	25	25
18	Oil flow		L/min	8.5	8.5
19	Hydraulic and liquid capacit	Pump system		Plunger pump	Double pump
20		Working pressure	MPA	16	20
21		Flow	L/min	8.5	9.5
22		Hydraulic oil tank capacity	L	12	12
23		Max. engine oil capacity	L	1.8	1.8
24		Fuel tank capacity	L	12	12
25	Dimendions		Unit
26	Track material		mm	770	770
27	Total length of track		mm	1200	1200
28	Min ground clearance		mm	380	380
29	Platform end radius of gyration		mm	1190	1190
30	Chassis width		mm	1020	1020
31	Track width		mm	180	180
32	Track height		mm	320	320
33	Transport length		mm	2550	2550
34	Total height of excavator		mm	1380	1380
35	Dimensions		Unit
36	Max.dig radius		mm	2400	2400
37	Max dig depth		mm	1400	1400
38	Max. dig height		mm	2490	2490
39	Max.unload height		mm	1750	1750
40	Max. vertical digging depth		mm	1320	1320
41	Min radius of gyration		mm	1190	1190
42	Max. lifting height of Dozer blade		mm	325	325
43	Max. digging depth of bulldozer		mm	175	175
44	Boom side swing（L/R）
45	Main configuration	valve		YIKDE	JINDE
46		Pump		Plunger pump	Double pump
47		Walk		Domestic	Domestic
48		Walk
49		Rotary motor		Domestic	Domestic
50		Operation method		The handle is on the front	Handles on both sides
